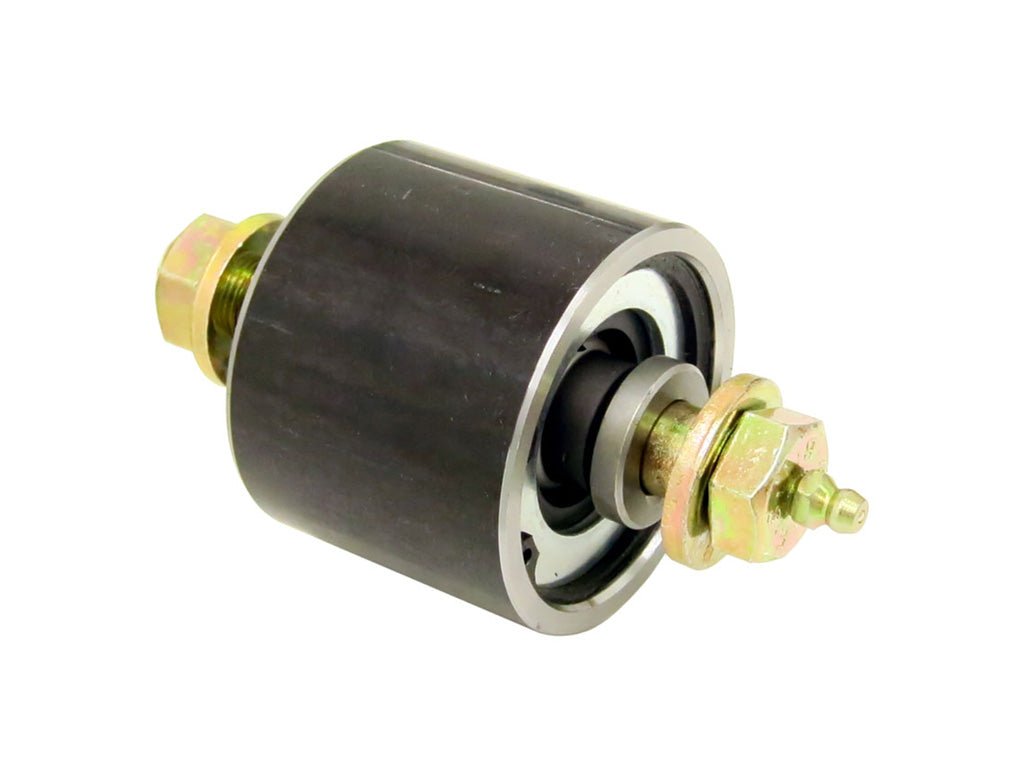

RockJock 2-1/2" Johnny Joint® Rod End w/ Greasable Bolt (2.625" x .5625" Ball)
RockJock 2-1/2" Johnny Joint® Rod End w/ Greasable Bolt (2.625" x .5625" Ball)
RockJock's weld-on Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180" wall machined DOM tubing. This specific joint is a 2-1/2" o.d. and features a 2.625" mounting width and a .5625" thru bolt hole. Grade 8 greasable bolt with nut and washers included.
Body Type | Weld-on |
Body Series | 2.5 inch OD, Standard Body |
Body Width | 2 inches |
Mount Width | 2.625 inches |
Hole Diameter | .5625 inch (9/16, 14mm) |
Misalignment | 32° Total |
Greasable Bolt | 9/16 x 4 1/2 inch, 18 TPI |
Lubrication Method | Internal, through ball center |
