Genuine Spicer Dana 30 Right Hand Axle Shaft Assembly - TJ / XJ / YJ / ZJ
Genuine Spicer Dana 30 Right Hand Axle Shaft Assembly - TJ / XJ / YJ / ZJ
Couldn't load pickup availability

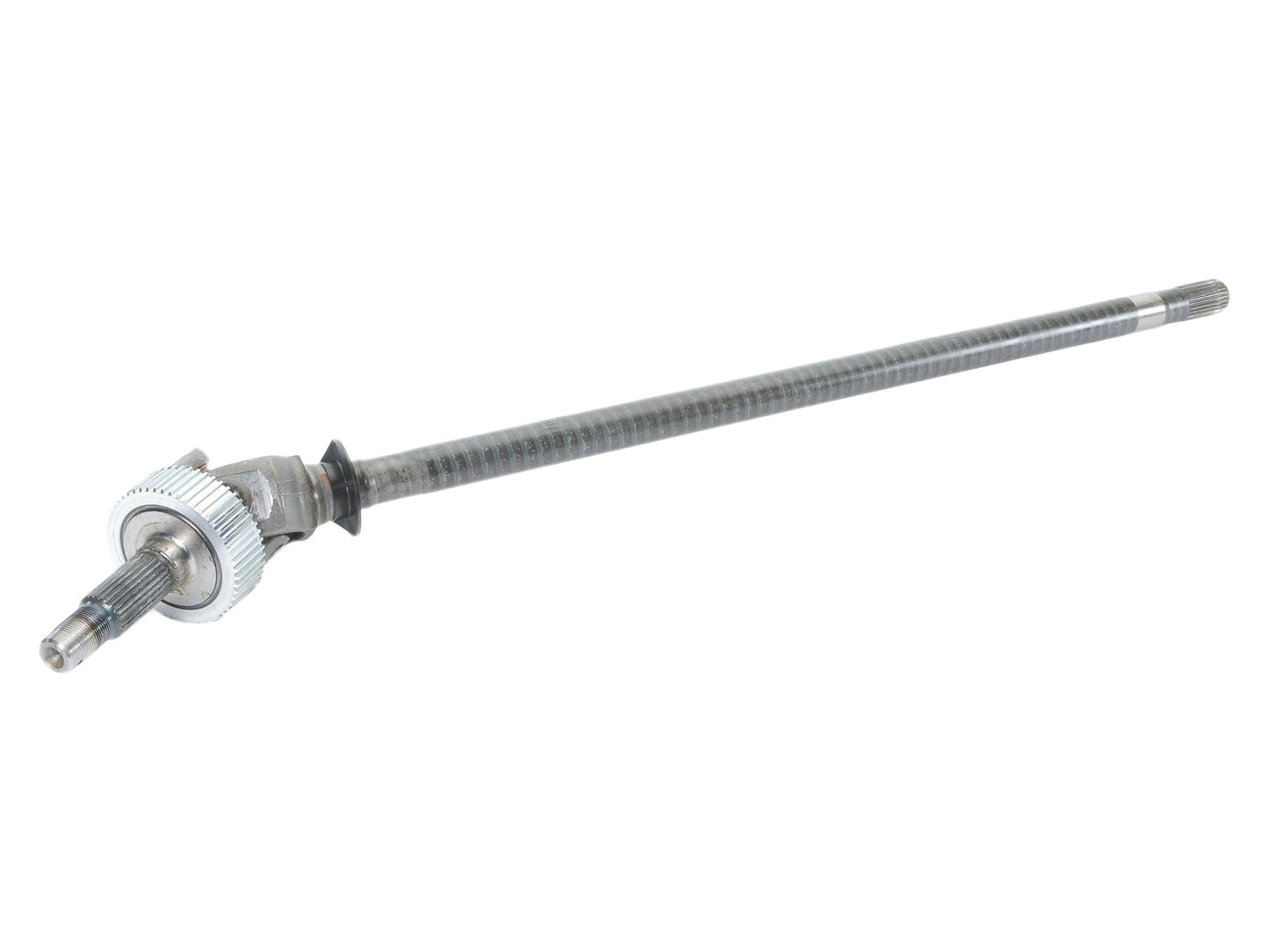

This is a complete axle shaft assembly for the Right Hand (passenger or "long" side) axle shaft assembly. Comes complete with inner shaft, outer stub shaft, and 5-760X axle joint. The inner shaft is 27 spline.
This assembly is a direct replacement for TJs and non-center disconnect XJs. This shaft is a great upgrade for center axle disconnect XJs and YJs when used with Rusty's block off plate and seal kit #ABK-12. This assembly is also a great upgrade for ZJs equipped with problematic CV-style front axle shafts.
Measurements
Inner shaft 32.40"
Outer shaft :6.11"
Overall length: 38.52"
| Brand | Spicer |
| Material | Steel |
| Length (IN) | 38.510 |
| Spline Count | 27 |
| ABS Sensor Ring Included | Y |
| ABS Sensor Ring Installed | Y |
| Axle Shaft Included | Y |
| Axle Type | Complete Assembly |
| Bearing Included | N |
| Full-Floating Or Semi-Floating | Semi-Floating |
| Inner Axle Included | Y |
| Outer Axle Included | Y |
| Quantity | 1 |
| Retainer Ring Included | N |
| Seal Included | Y |
| Seal Kit Included | N |
| U-Joint Included | Y |
| Wheel Bearing Included | N |
| Wheel Bolt Prep Kit Included | N |
| Wheel Nuts Included | N |
| Wheel Studs Included | N |
| Length (MM) | 978.154 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 17.99 LB |
