RockJock

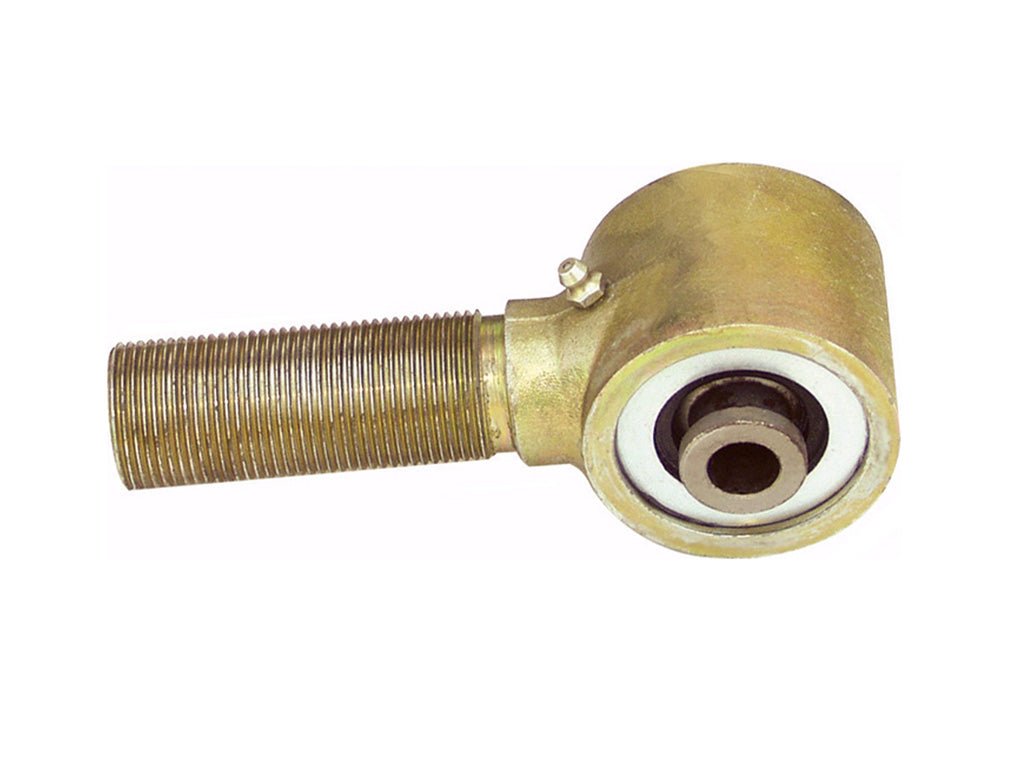

RockJock 2-1/2" Forged Johnny Joint® 1-1/4" RH Thread (2.365" x .5625" Ball)

RockJock 2-1/2" Forged Johnny Joint® 1-1/4" RH Thread (2.365" x .5625" Ball)

Regular price $66.00 USD
Regular price Sale price $66.00 USD
Sale Sold out
Shipping calculated at checkout.

Forged narrow body Johnny Joint® rod ends feature forged steel construction, a 1 1/4"-12 right hand threaded shank and come fully assembled with our standard Johnny Joint® internals (2.365" wide ball center with a .5625" thru bolt hole). These units are externally greasable via a zerk fitting. Finished in gold zinc plating. We also keep the jam nuts for these units on hand at all times as well.



Body Type Forged Steel (Threaded)
Body Series 2.5 inch OD, Narrow Body
Body Width 1.685 inches
Thread Size 1 1/4 inch, 12 TPI
Thread Direction Right Hand
Shank Length 3 1/4 inch
Mount Width 2.365 inches
Hole Diameter .5625 inch (9/16, 14mm)
Misalignment 42° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
