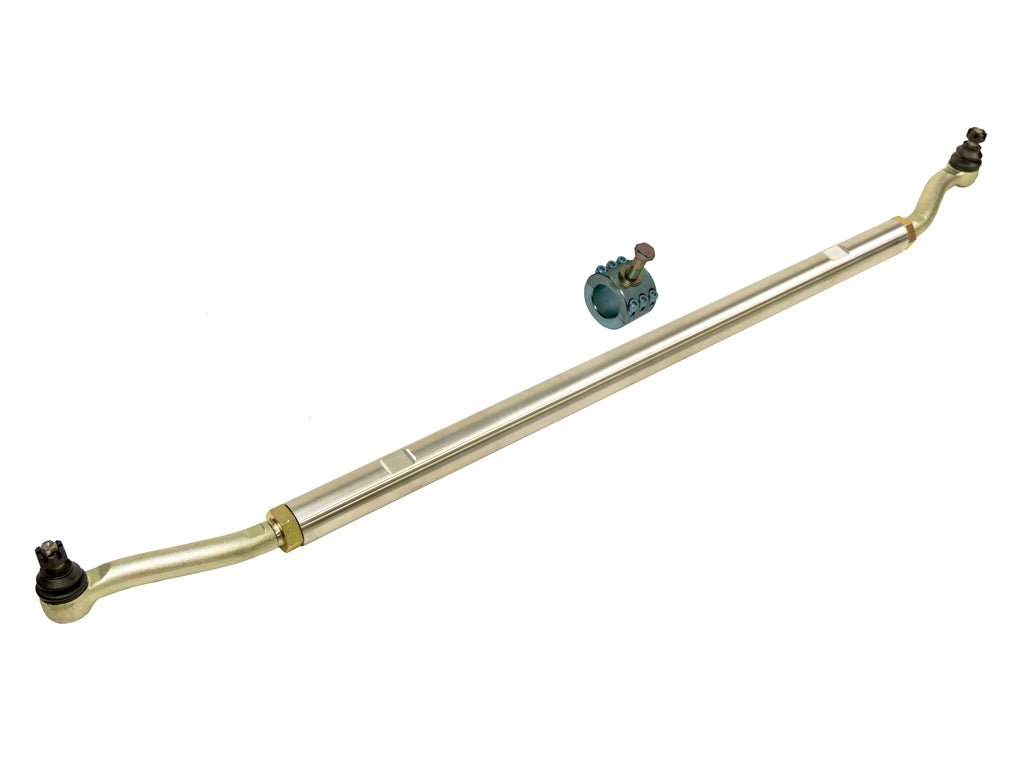

Rusty's Aluminum HD Tie Rod Assembly - JK Wrangler

Rusty's Aluminum HD Tie Rod Assembly - JK Wrangler

Regular price $459.00 USD
Regular price Sale price $459.00 USD
Sale Sold out
Shipping calculated at checkout.

The Rusty's Aluminum Heavy-Duty Tie Rod for 2007-2018 is beefier than anything on the market and is packed with unique features! Rusty's Aluminum  HD Tie Rod starts with massive 1.825" diameter solid 7075 T6 aluminum, which is much larger and stronger than the factory drag link. Equally massive forged adjustable ends thread into the tie rod with jam nuts.

Rusty's Aluminum HD Tie Rod for the JK Wrangler works great as a stand-alone upgrade or can be combined with our HD Drag Link to create a steering system that is nearly indestructible! Sold as a complete unit that includes the tie rod bar, tie rod ends, and jam nuts.

Please Note: You must have a 17 inch or larger wheel. The wheel must have 4.75 to 5 inches of back spacing. Back spacing is the amount of space between the back side of the wheel where the lug studs go through to the back of the wheel. The amount of clearance may still vary do to the construction of the wheel, bead style, thickness of the wheel and so on. Wheel spacers are needed on stock wheels and possibly needed on some aftermarket wheels. Rusty's offers compatible wheel spacers from a 1/4 inch to 1.5 inches thick. If not sure on your back spacing it would be best to measure it and also compare the thickness of the wheel and bead to a factory Rubicon style wheel for the best fit.


KEY FEATURES:

  • Massive 1.825" 7075 Aluminum Tie Rod
  • Adjustable forged ends are threaded for adjustment without removing the tie rod from the vehicle
  • Machined hexed ends for easy adjustment
  • Zinc Plated tie rod ends for protection and long life
  • HD jam nuts
  • Serrated Lock Washers
  • The strongest JK Tie Rod you can buy



REPLACEMENT TIE ROD END PART NUMBERS:
RS-TR018-JK / (Right Hand Thread) (Located on the Driver Side)
RS-TR017-JK / (Left Hand Thread) (Located on the Passenger Side)

    MATERIALS

    SHIPPING

    DIMENSIONS

    PRODUCT INSTRUCTIONS
